CL -     150 -    1    B   F    V   -K
(1)       (2)       (3)  (4) (5) (6)  (7)
(1) Type: CL.
(2) Cartridge Nos.: 60-10"x4, 80-20"x4, 150-20"x6, 180-20"x8, 220-20"x12, 330-20"x18.
(3) Power: A-250W, 1-1HP, 2-2HP, 3-3HP.
(4) Media Option: B-Nut Locking Cartridge.
(5) Connection: F-Flange, U-Union.
(6) Elastomer: V-VITON.
(7) Pump Inside: K-SDK Pump, C-SDC Pump, M-SMK Pump.


Features:
Filter is made of CPVC, suitable for chromic acid and various chemicals.
Pump head is made of CPVC/PVDF.
Max. temperature: 50.
Only filtration method of cartridge nut is available.
No metal stanchion and part for wet end.

Model		CL-60	CL-80	CL-150	CL-180	CL-220	CL-330
Capacity (L/min)		60	80	150	180	220	330
For Tank (ton)		0.4~0.6	0.6~1.0	1~2	1.5~2.5	2.5~4	4~6
Media	Cartridge Nos. (Nut locking)	10"X4	20"X4	20"X6	20"X8	20"X12	20"X18
Max. Temperature(C)		50	50	50	50	50	50
Motor (HP)		1/4	1/3	1~2	1~2	2	3

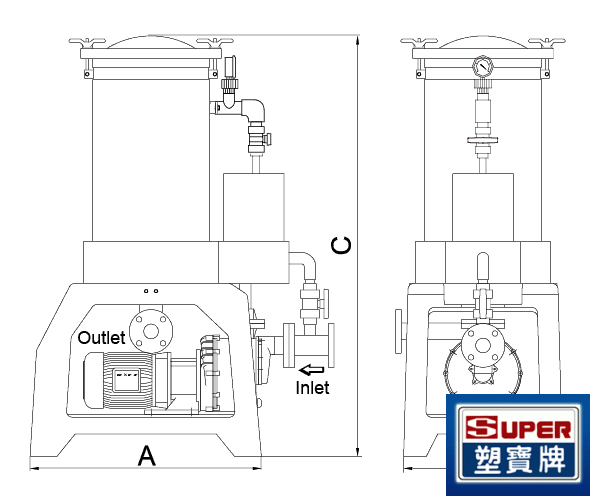

Dimensions (mm)	Length(A)	500	570	730	730	825	825
	Width(B)	355	355	420	445	535	575
	Height(C)	900	1135	1415	1395	1420	1495
Out/Inlet (inch)		3/4"	1"	1-1/2"	1-1/2"	1-1/2"	2"
Weight(Kg)		40	45	80	85	120	150
